Installation Job Board - shopVOX Pro

Tyler MacDonald Updated by Tyler MacDonald

The Installation Job Board is a powerful scheduling tool in shopVOX designed to help you organize and manage your installations and installer assignments efficiently. It provides a centralized view of all installation steps across jobs, lets you assign team members, view availability, and optimize install schedules using a dedicated visual calendar.

Setup Guide

To use the Installation Job Board effectively, make sure the following setup steps are completed:

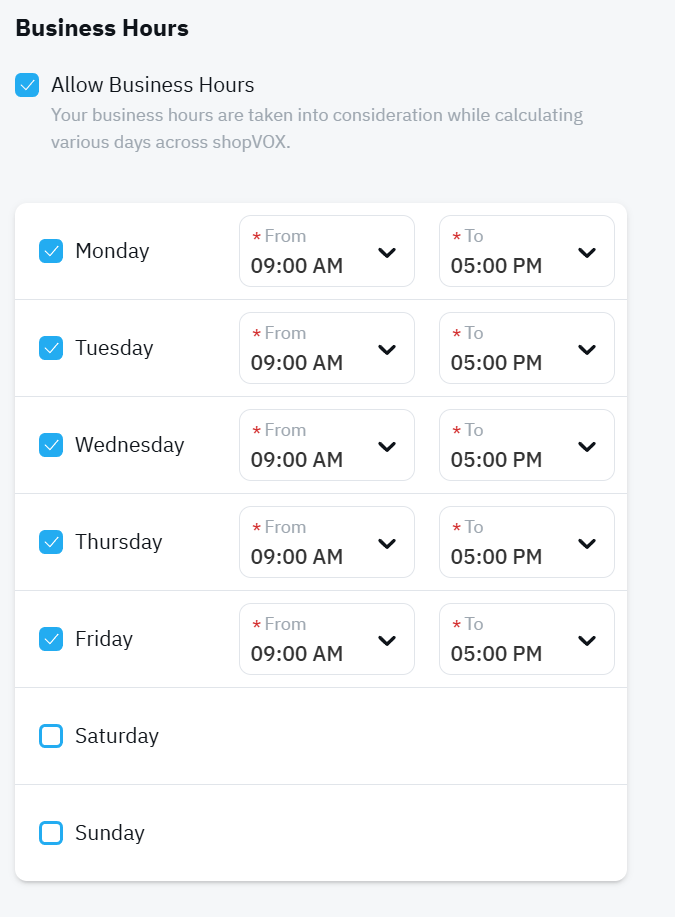

1.Set Your Business Hours

  • Go to: Settings > Account > Business Hours
  • Ensure your company's working hours are defined so the board aligns with your schedule.

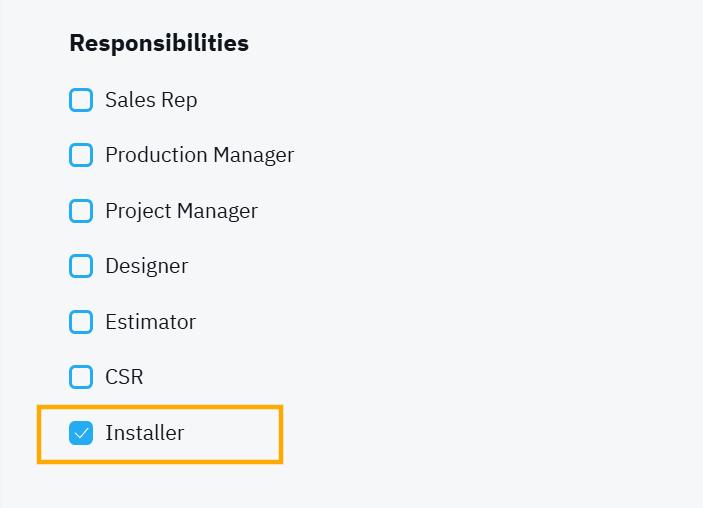

2. Assign Installers

  • Navigate to: Settings > Team > Users
  • Select a user and enable the “Installer” toggle for any team members who should be a schedulable as installers.

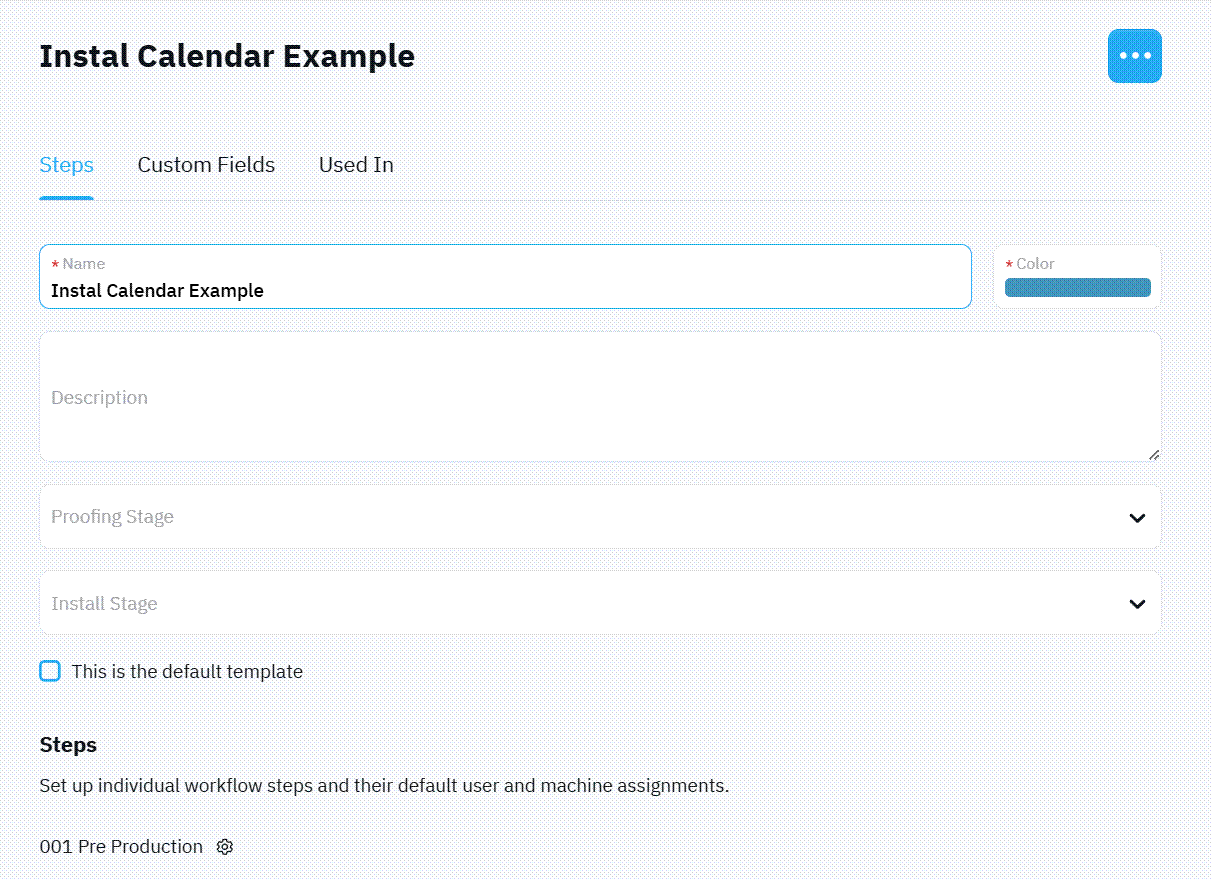

3. Create or Edit a Workflow with an Install Stage

  • Go to: Settings > Workflows
  • Select a workflow or create a new one, and include a stage specifically for Installation.

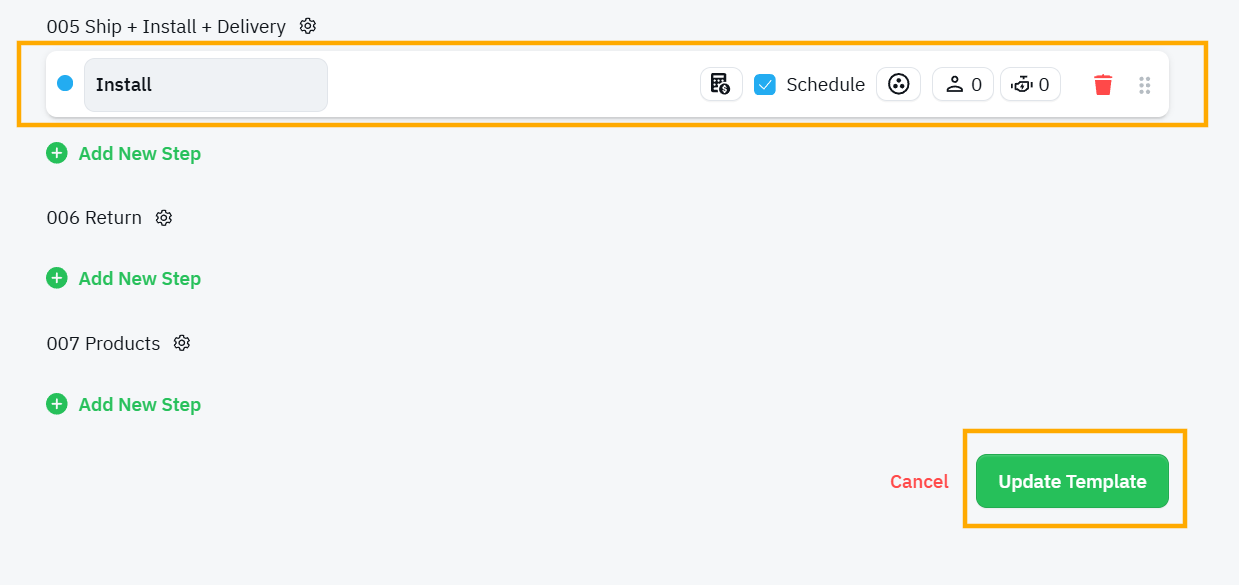

  • Once you select the Install Stage, you will see the "Install" step appear there. Be sure to click "Update Template"

Create a Job from a Sales Order

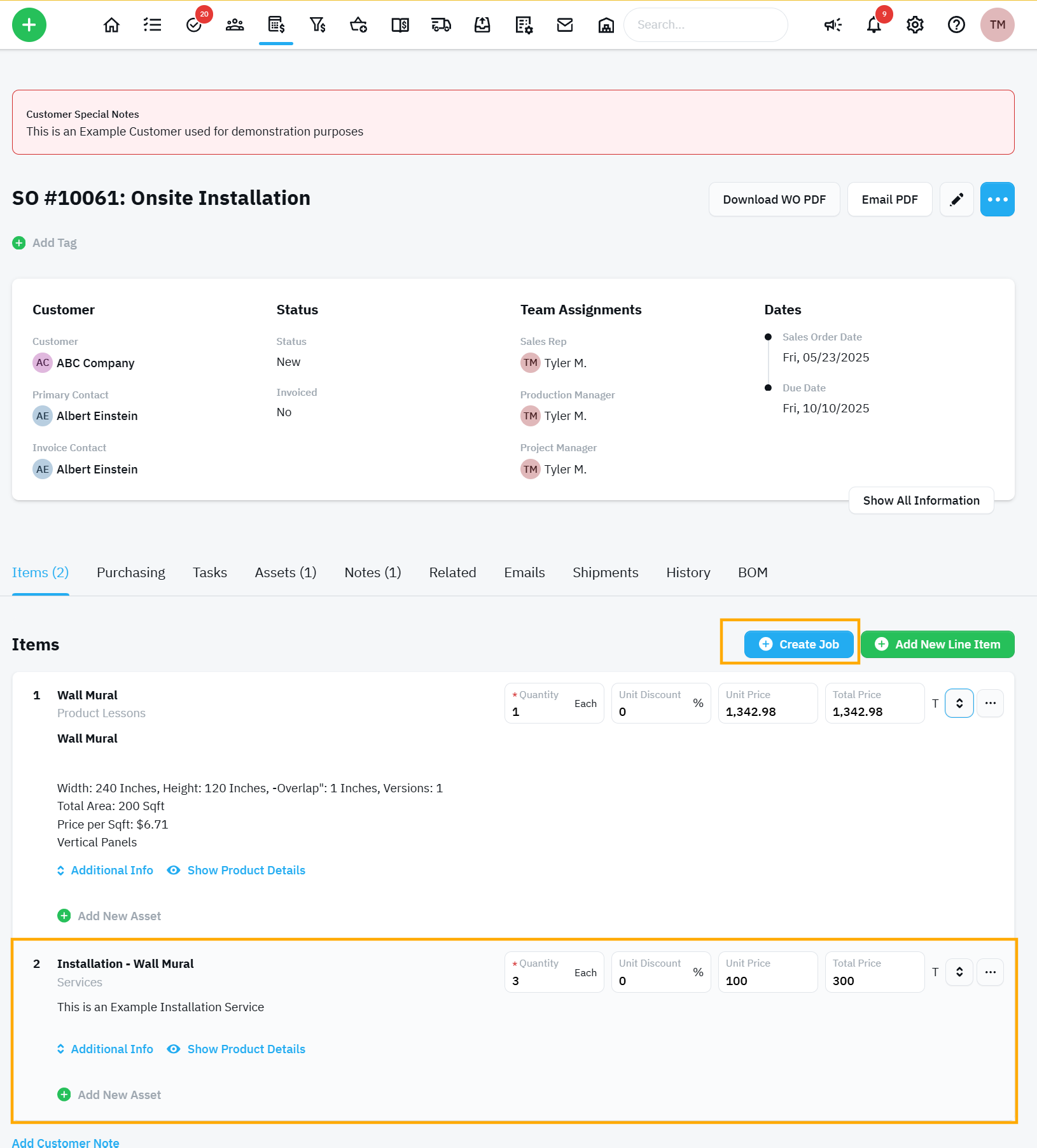

  • In a Sales Order:

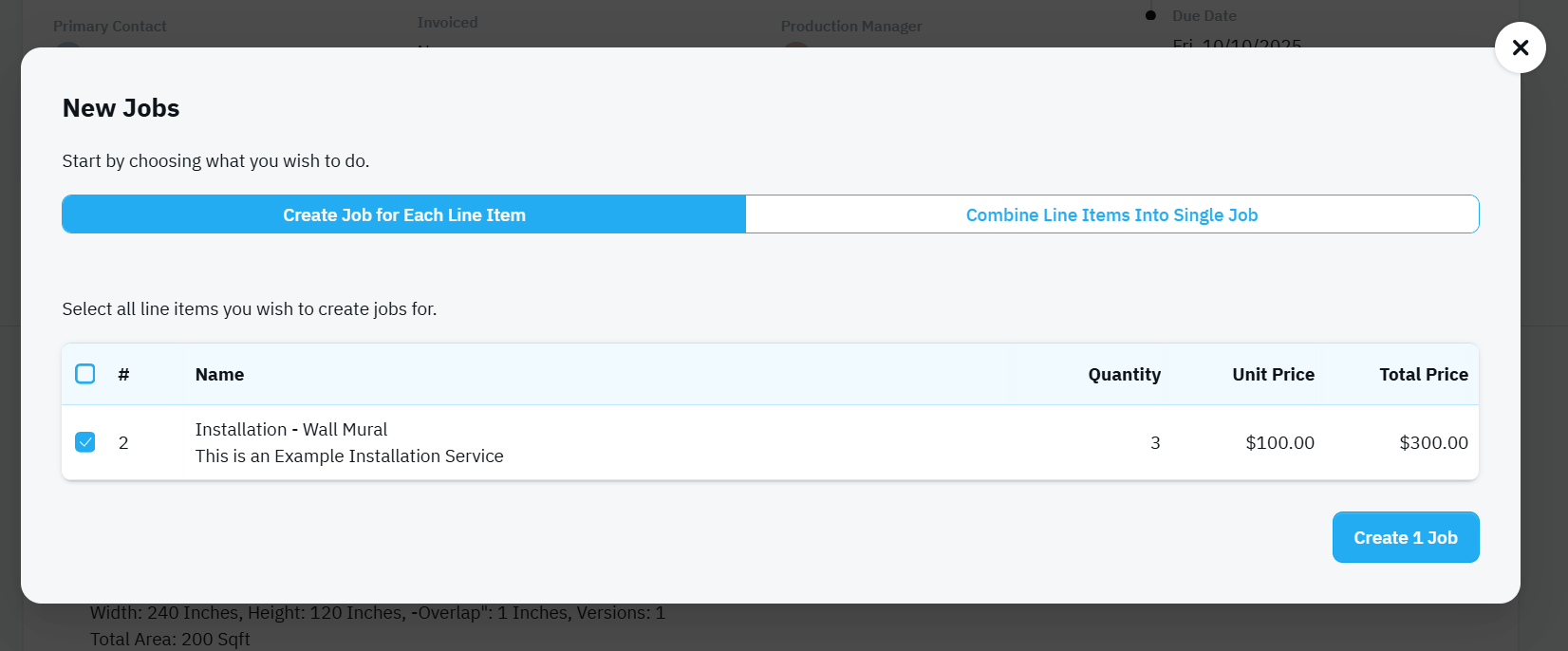

    • Add a line item and click “Create Job”

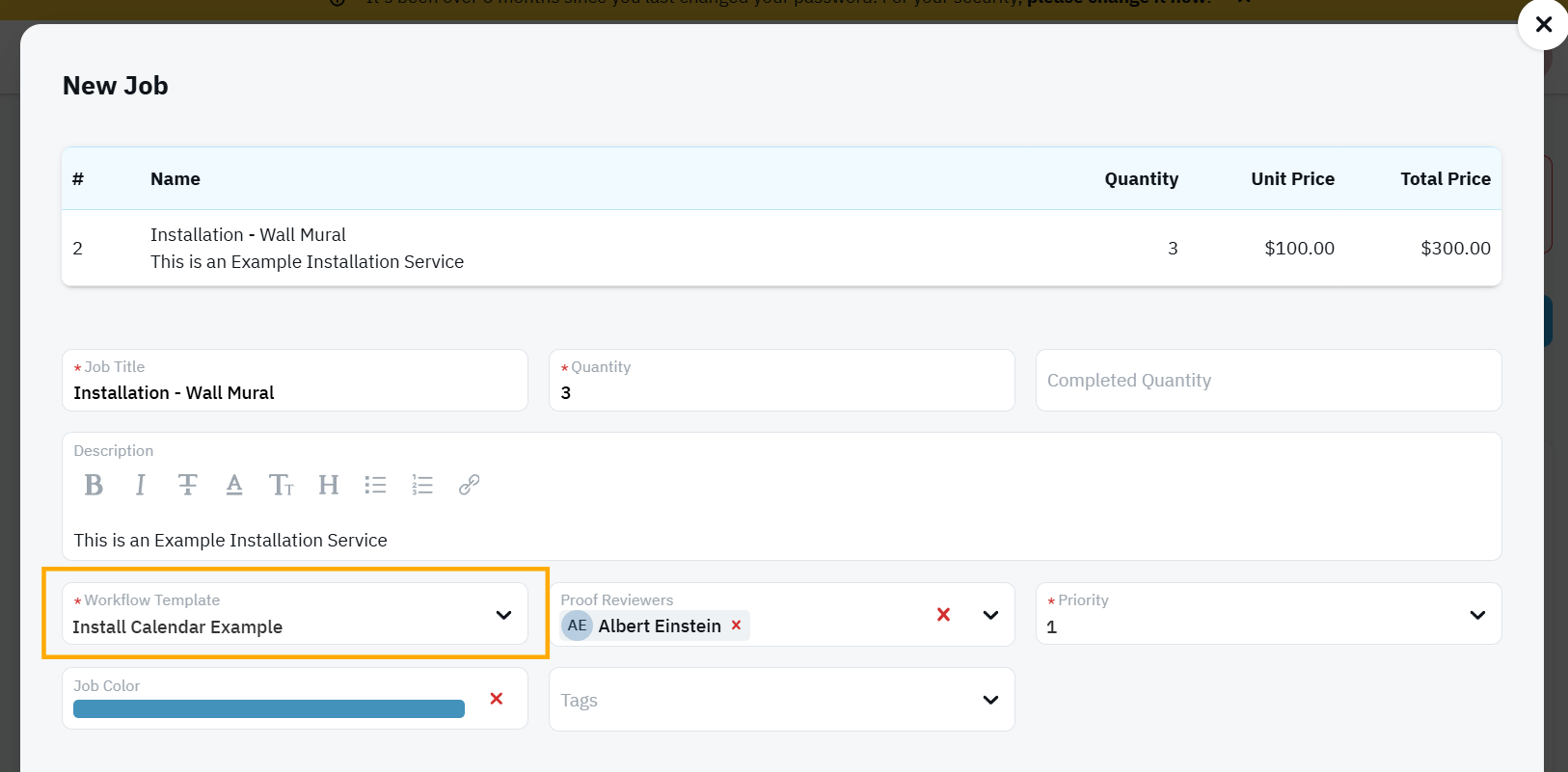

    • Select the workflow that includes the Install stage (or set it as the default for install-related products)

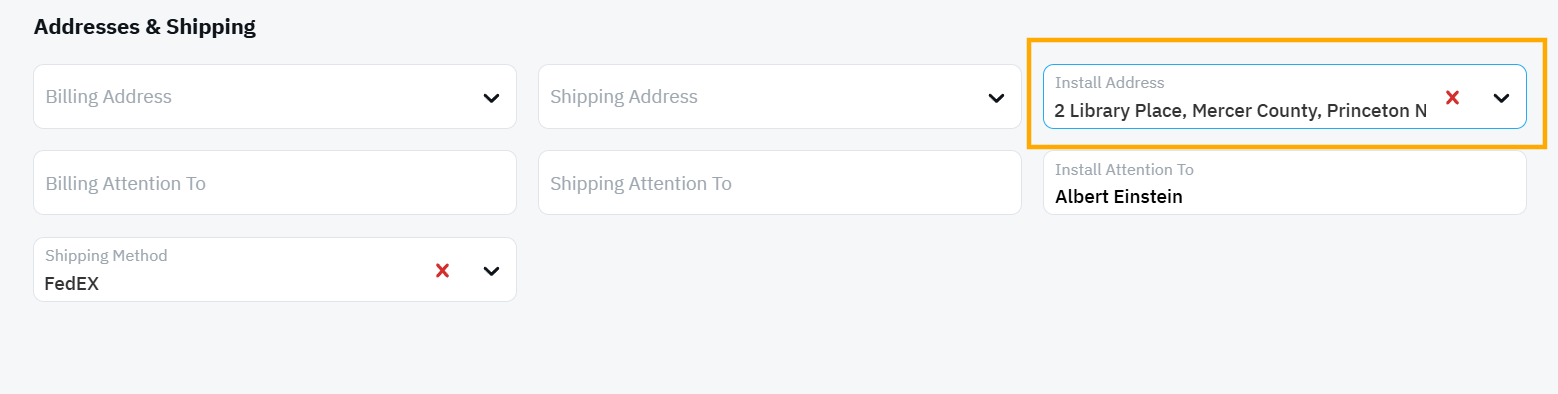

    • Add the Installation Address

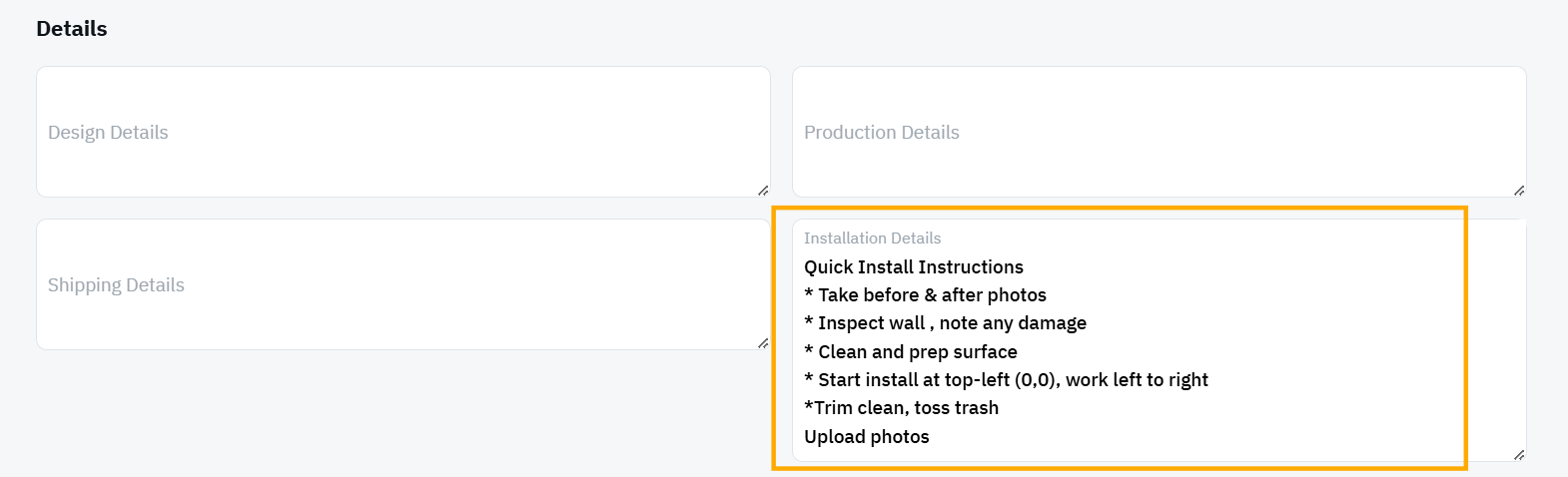

    • Enter any Installation Details in the designated Install field

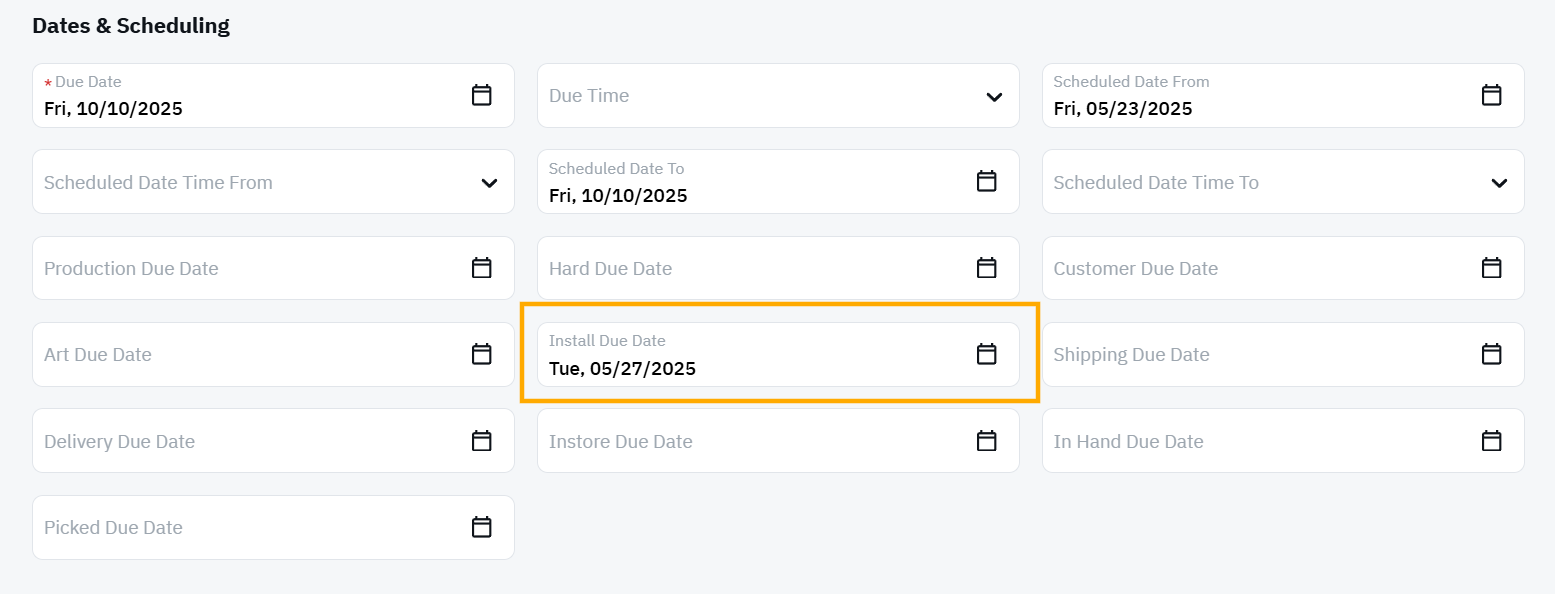

    • Set an Install Due Date – even a tentative date is helpful

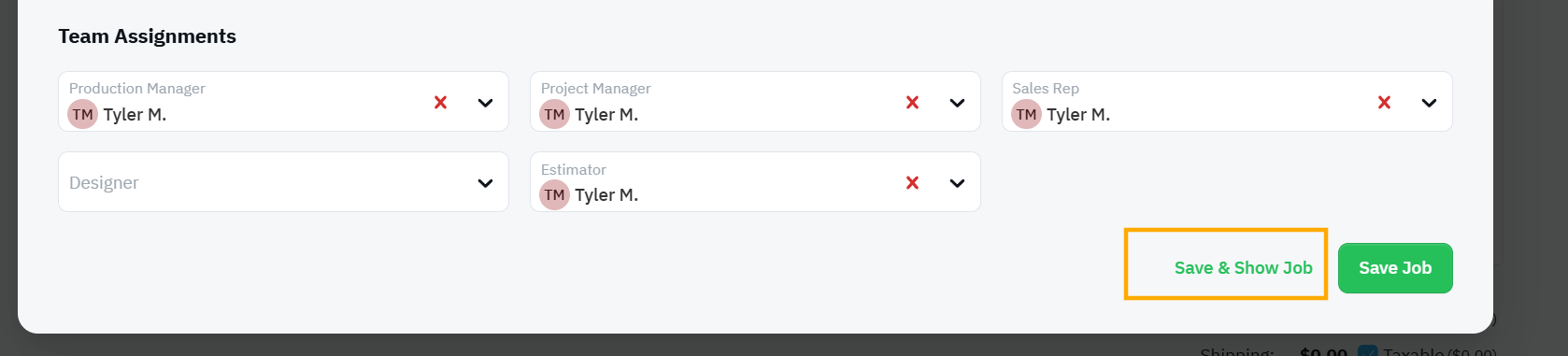

    • Click "Save & Show Job"

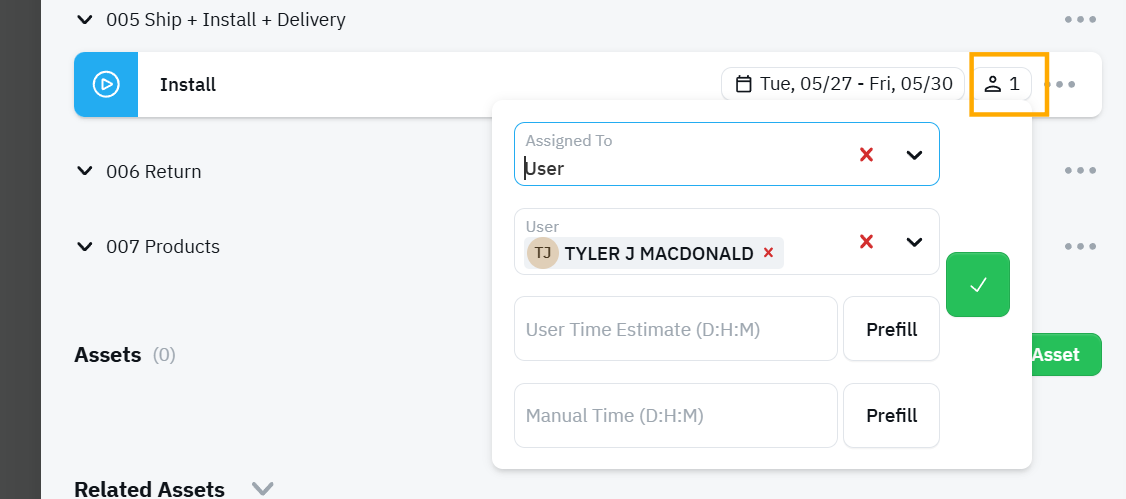

    • Assign an Installer (must be a user marked as an installer)
All of this information will display automatically on the Installation Job Board for streamlined scheduling and review.

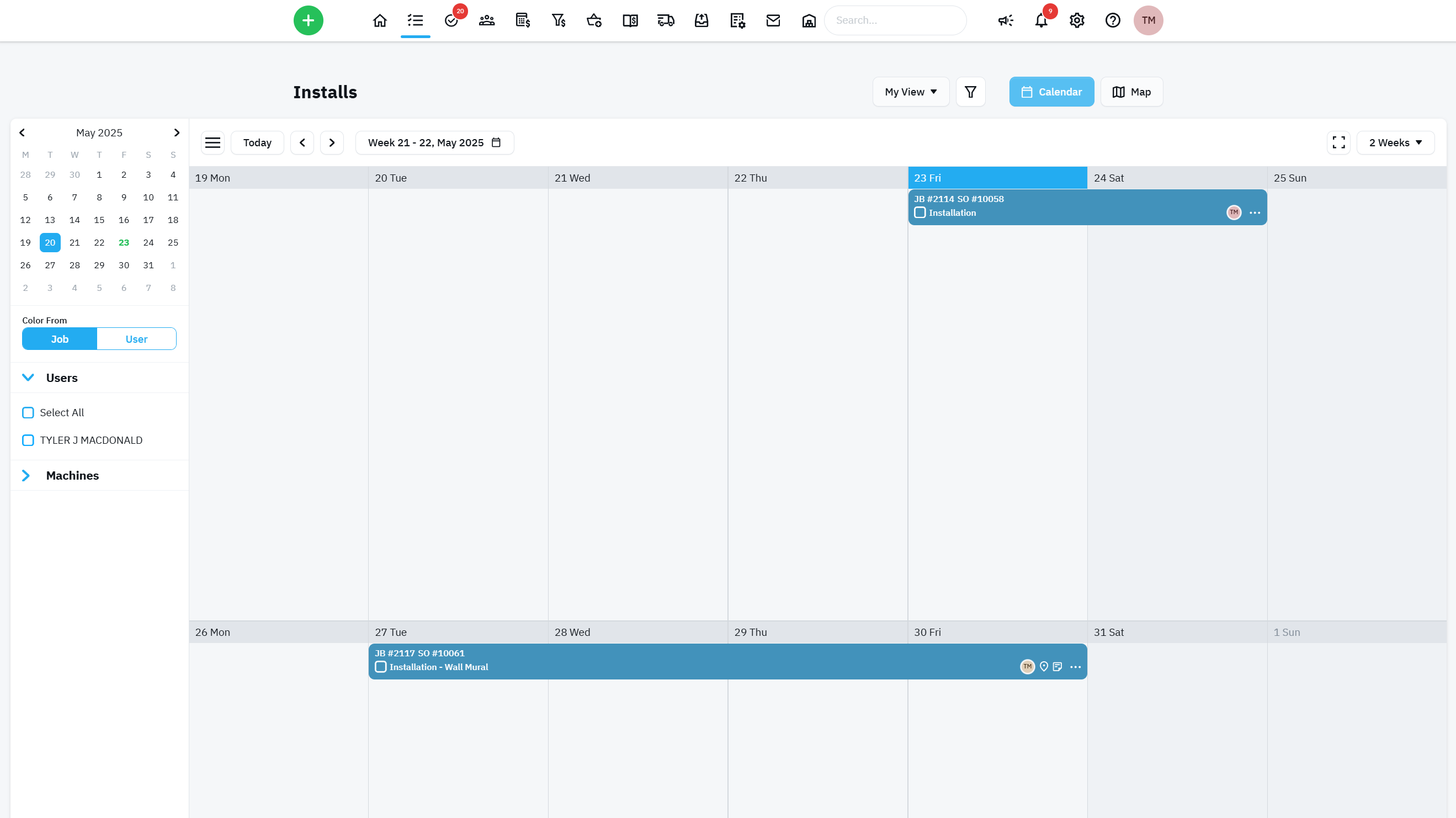

Installation Job Board Features

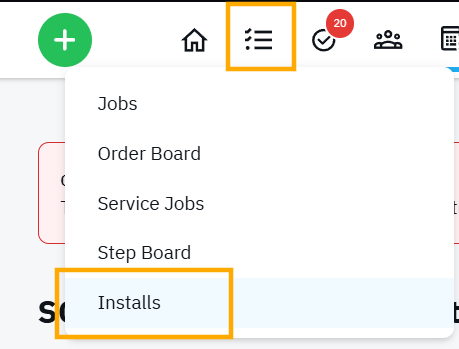

  • From the Top Navigate to Jobs/Installs
    The screen will displays all jobs with an Installation stage

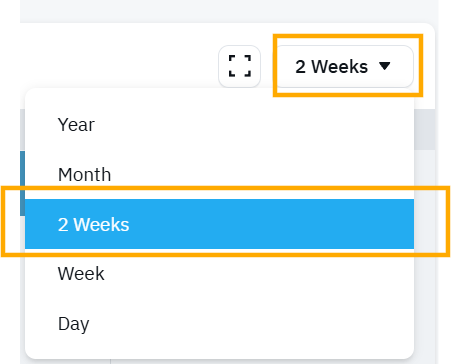

  • Navigate by Day, Week, 2 Weeks, Month, or Year
  • Toggle views:
    • Users – displays installer schedules
    • Machines – shows equipment-related availability

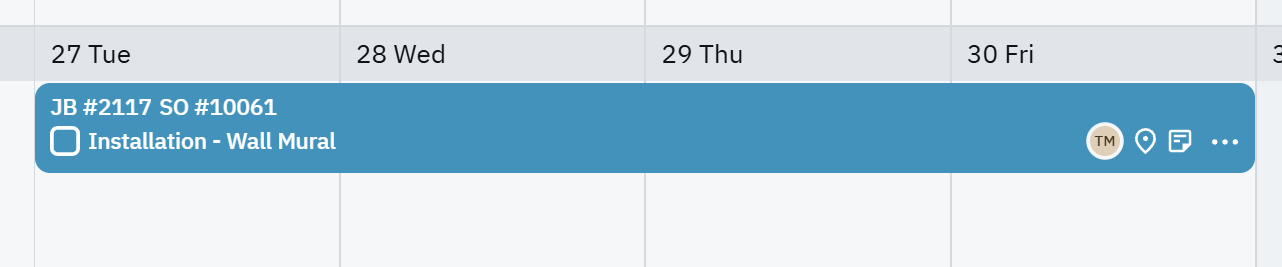

  • Job Info:
    • See Job and Sales Order number, as well as the Line Item Name
    • Color Indicators:
      • ✅ Solid color: Confirmed Install Date
      • ⚠️ Striped: Unconfirmed Install Date

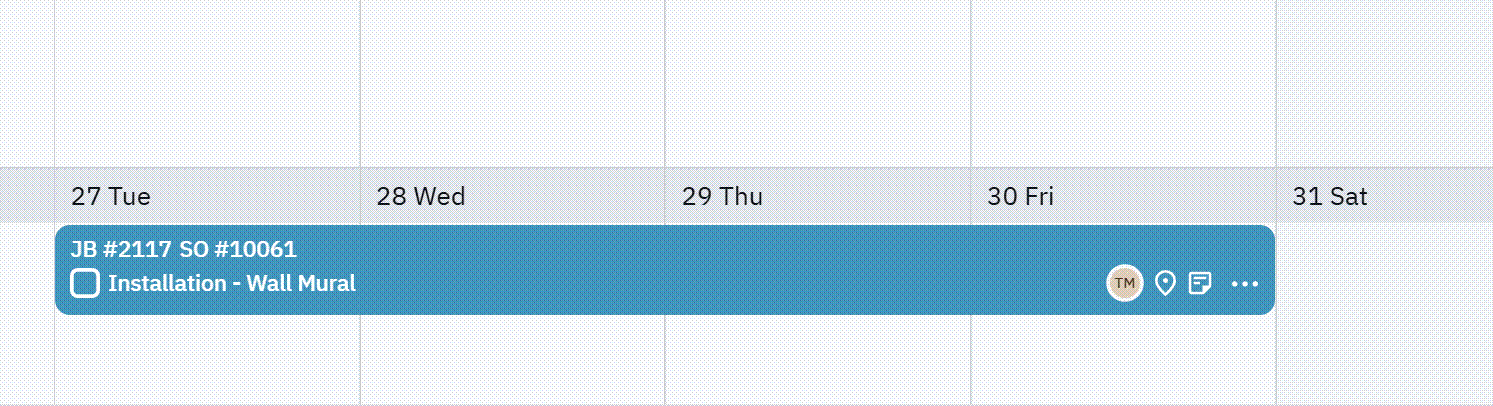

    • Hover to see Information
      • Installer(s)
      • Location
      • Details

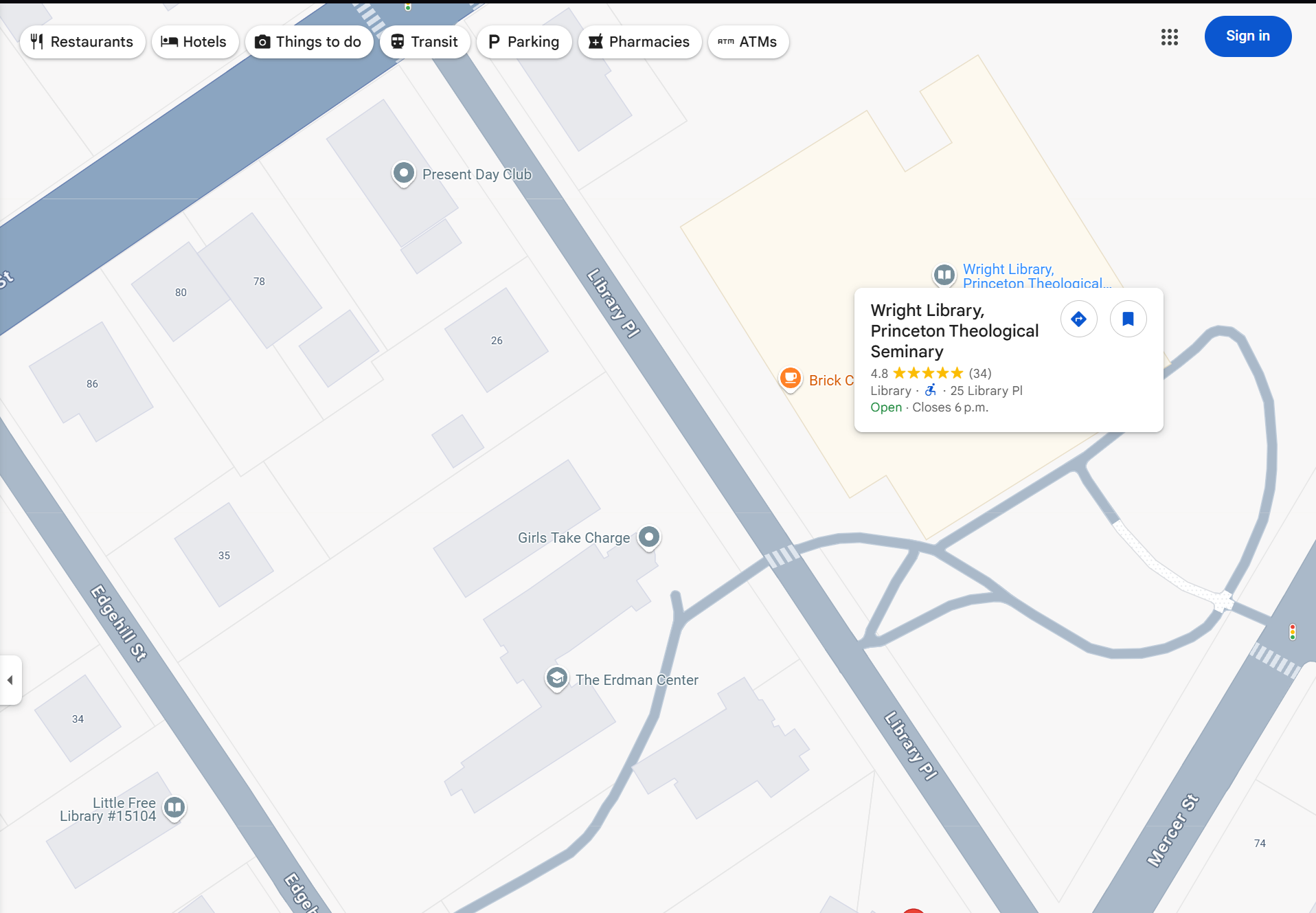

  • Map View:
    • If a job has an install address, a map icon will appear
    • Clicking it opens Google Maps for quick navigation

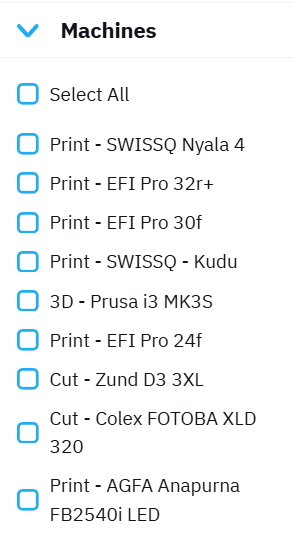

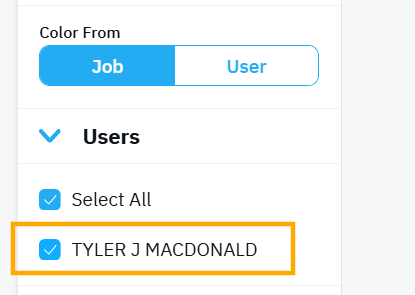

  • Filters:
    • Easily filter and locate jobs by user, machine, or unscheduled status

Need Help?

If you're unsure how to configure workflows, assign installers, or use the board effectively, reach out to our support team for assistance.
